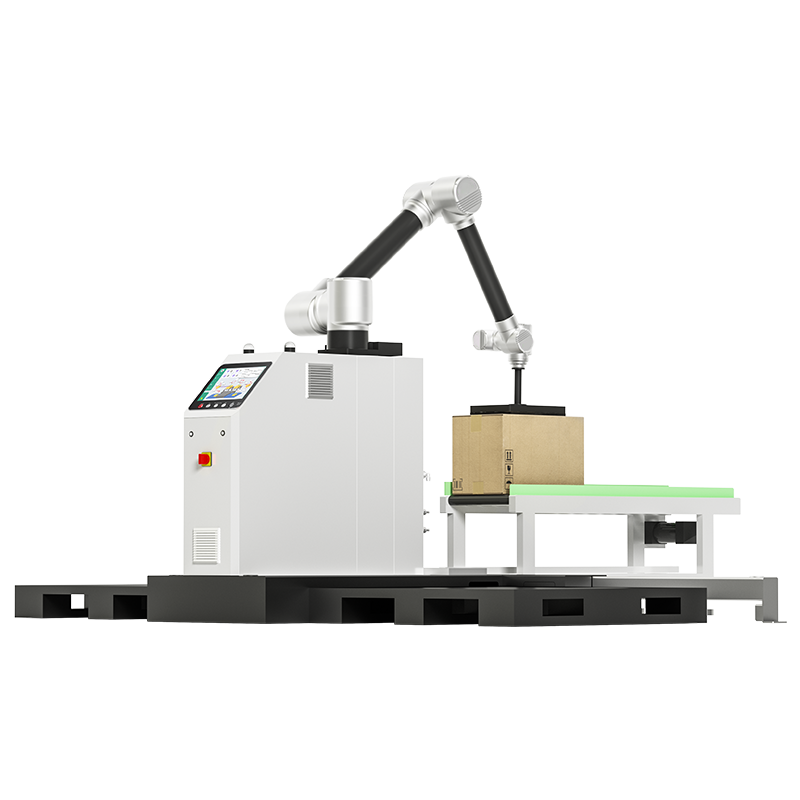

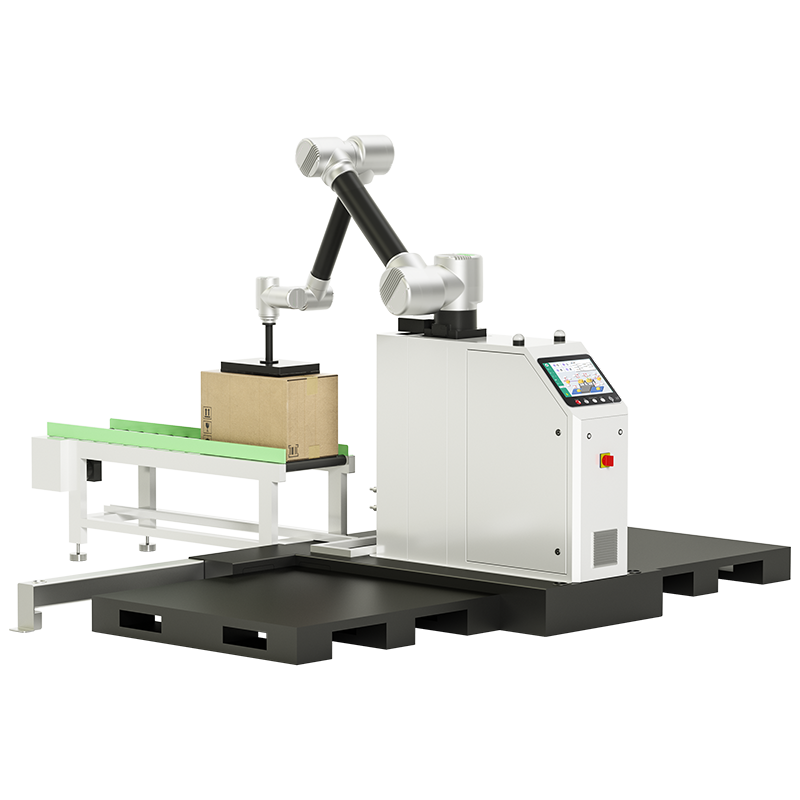

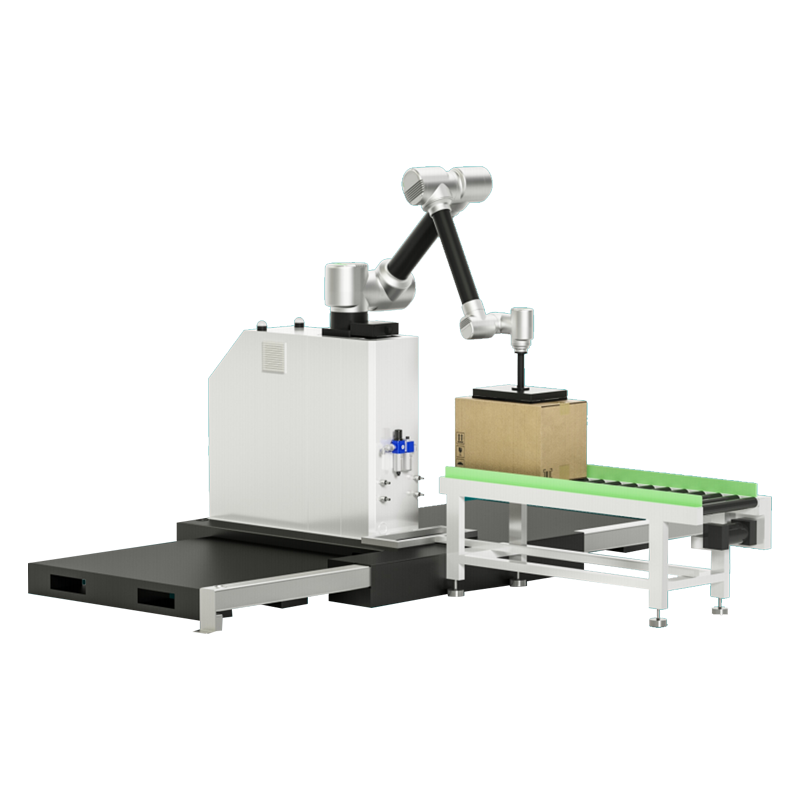

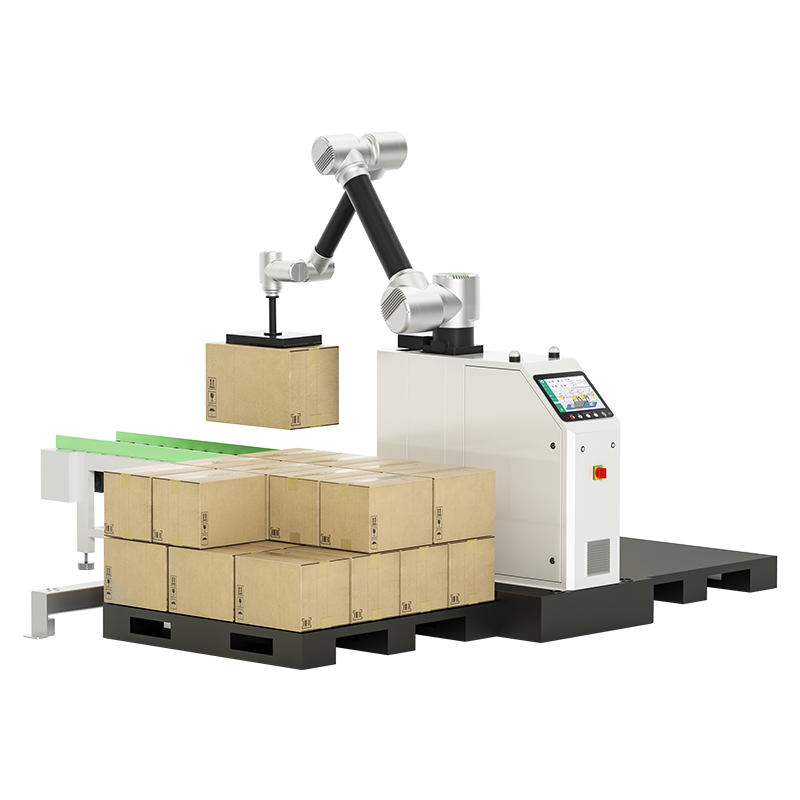

ARB Basic Bot
ARB Basic Bot
ARB-GD50 Max
Machine load: 50 kg
Working radius: 1700 mm
Vertical distance: lifting type H2=2100mm
Palletizing speed: <6pcs/min
Maximum power consumption: 4.8 kW
Machine weight: =420 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.5 m
ARB-GD60 Max
Machine load: 60 kg
Working radius: 1700 mm
Vertical distance: lifting type H2=2100mm
Palletizing speed: <6pcs/min
Maximum power consumption: 4.8 kW
Machine weight: =420 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.5 m
ARB-GD12 Max
Machine load: 12 kg
Working radius: 1900 mm
Vertical distance: lifting type H2=2600mm
Palletizing speed: <12 pcs/min
Maximum power consumption: 3.3 kW
Machine weight: = 300 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.5 m
ARB-GD16 Max
Machine load: 16 kg
Working radius: 1900 mm
Vertical distance: lifting type H2=2600mm
Palletizing speed: <12 pcs/min
Maximum power consumption: 3.3 kW
Machine weight: = 300 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.5 m
ARB-GD20 Max
Loading of the device: 20 kg
Working radius: 1600 mm
Vertical distance: lifting type H2=2100mm
Palletizing speed: <12 pcs/min
Maximum power consumption: 3.3 kW
Machine weight: = 300 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.2 m
ARB-GD25 Max
Loading of the device: 25 kg
Working radius: 1600 mm
Vertical distance: lifting type H2=2100mm
Palletizing speed: <12 pcs/min
Maximum power consumption: 3.3 kW
Machine weight: = 300 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.2 m
ARB-GD40 Max
Mechanical load: 40 kg
Working radius: 1700 mm
Vertical distance: lifting type H2=2100mm
Palletizing speed: <6pcs/min
Maximum power consumption: 3.6 kW
Machine weight: =350 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.5 m
ARB-GD20 Pro
Robot load: 20 kg
Working radius: 1900 mm
Vertical distance: fixed HI = 2100 mm
Palletizing speed: <12 pcs/min
Maximum power consumption: 2.3 kW
Machine weight: =260 kg
Floor space: 1505 x 1716 mm
Height of material: 3m
ARB-GD30 Pro
Machine load: 30 kg
Working radius: 1900 mm
Vertical distance: fixed HI = 2100 mm
Palletizing speed: <12 pcs/min
Maximum power consumption: 3.3 kW
Machine weight: =260 kg
Floor space: 1505 x 1716 mm
Height of material: 3m
ARB-GD40 Pro
Mechanical load: 40 kg
Working radius: 1900 mm
Vertical distance: fixed HI = 2100 mm
Palletizing speed: <9pcs/min
Maximum power consumption: 3.6 kW
Machine weight: =310 kg
Floor space: 1505 x 1716 mm
Equipment height: 3.5 m
Application Scenarios
No data was found
Adoption Across Industries
See how Ariobot robots create competitive advantages for businesses.
Specification
ARB Basic Bot
